答案摘要：图王09U 60度刻字刀片是本页供应资料所列的切割刀，页面标注刀杆直径1.5 mm、长度23 mm、偏心距0.25 mm、最大材料厚度0.25 mm和5片装。该名称容易与Graphtec官方CB09UB-K60混淆，但官方型号属于CB09系列，官方页面并未证明本页1.5 mm刀杆商品就是该原装零件。订购前必须核对实物尺寸、刀座和设备说明。

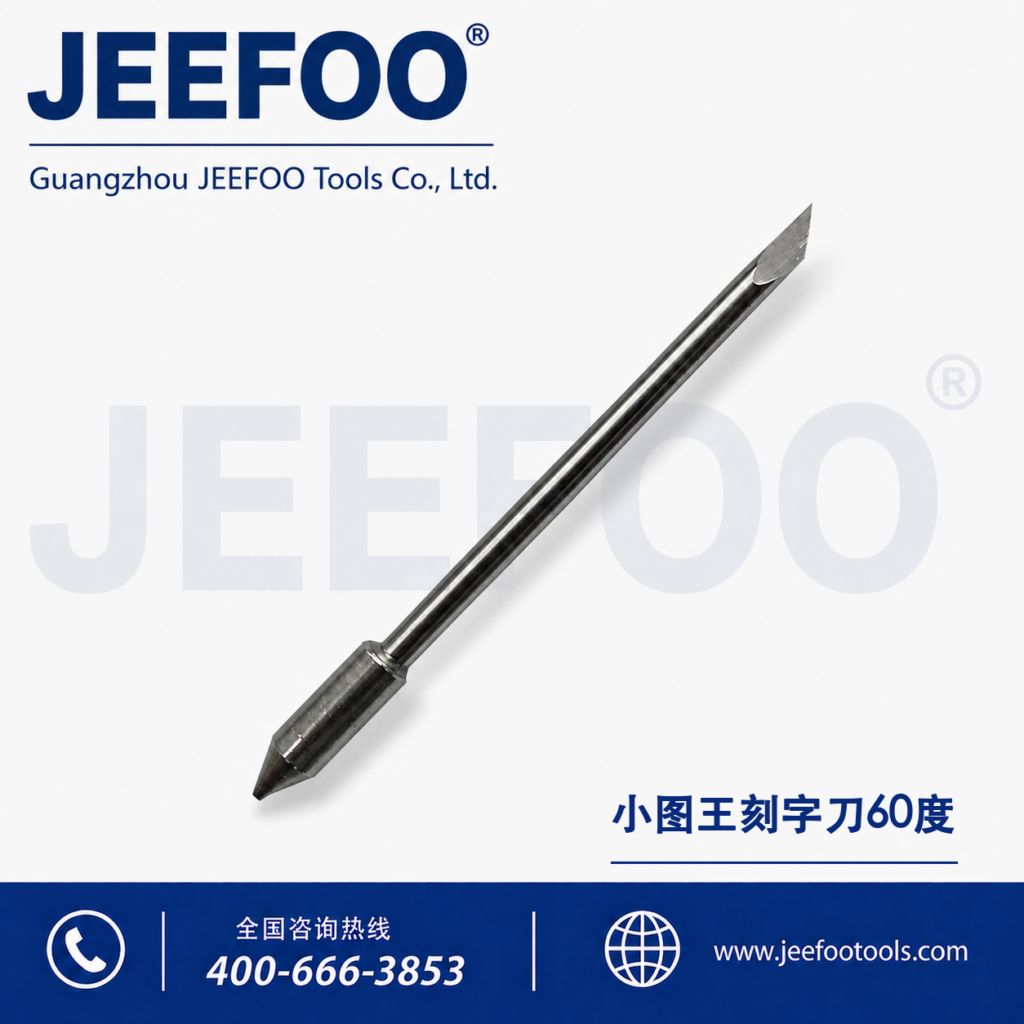

图王09U 60度刻字刀片：页面供应参数
| 项目 | 本页供应资料 |
|---|---|
| 刀尖角度 | 60°；同系列文字另列30°和45° |
| 刀杆直径 | 1.5 mm |
| 总长度 | 23 mm |
| 偏心距 | 0.25 mm |
| 标称最大材料厚度 | 0.25 mm |
| 硬度 | 91.5 HRA（供应资料标称） |
| 抗弯强度 | 4000–4200 N/mm²（供应资料标称） |
| 包装 | 5片/盒 |
页面未展示独立检测报告、品牌授权、产地证明或可追溯零件编号，因此硬度、强度和“进口”身份都应视为供应资料，不应写成已由第三方验证的事实。
与Graphtec CB09UB-K60官方资料的区别
Graphtec America官方刀片目录列有CB09UB-K60，并把它描述为适合窗膜或不超过0.25 mm薄膜的60°刀片；官方目录同时将CB09系列与CB15系列及相应刀座分开列示。本页商品却标注1.5 mm刀杆和“09U”名称，存在命名与尺寸混合的可能。因此，不能仅凭09U或K60相关字样断定它是Graphtec原装CB09UB-K60，也不能直接套用官方兼容机型。
选型、安装与试切步骤
- 测量刀杆：用现有刀片或可靠量具确认刀座需要的直径；本页供应资料写的是1.5 mm。
- 确认总长度：核对23 mm刀片是否能被刀座正确夹持，且不会妨碍旋转。
- 查设备手册：确认设备支持的刀片系列、刀座型号、偏心补偿和材料限制。
- 控制刀尖外露：只露出足以切透面材的长度，避免以过度外露弥补磨损或刀压不足。
- 小样试切：从保守刀压和速度开始，检查方形、圆形、闭合转角与排废表现后再调整。
其他规格可查看站内小图王刻字刀系列。
图片识别参考
常见问题
这款刀片能否确认是Graphtec CB09UB-K60原装？
不能。页面没有授权、包装或零件追溯证据，而且标注的1.5 mm刀杆需要与官方CB09系列分开核验。
60度刀尖是否一定适合所有窗膜？
不一定。薄膜结构、厚度、胶层、背纸、图形大小、设备、刀座和参数都会影响结果，必须先试切。
页面为什么写09U又写1.5 mm？
这是本页既有供应资料的组合，可能是兼容品命名或录入方式，不能据此推定官方规格。采购时应优先核对实物尺寸。
出现转角不闭合或底纸划伤怎么办？
检查刀尖外露、刀座转动、残胶、磨损、刀压、速度和offset。避免只增加刀压。
English technical reference: 09U-style 60 degree blade listing
Quick answer: This page lists a 60 degree plotter blade described with the 09U name. Supplier data on the page states a 1.5 mm shank, 23 mm overall length, 0.25 mm offset, maximum material thickness of 0.25 mm, and five blades per box. These statements apply to this listing only. They do not establish imported origin, genuine Graphtec manufacture, or official CB09UB-K60 identity.
Why the model name requires caution
Graphtec America’s current blade directory includes the official CB09UB-K60 and describes it as a super steel blade for window tint or thin film up to 0.25 mm. The same official directory separates CB09 blade holders from CB15 blade holders. This page, however, identifies a 1.5 mm shank while using 09U wording. That combination must be verified physically and must not be treated as proof that the item is the official Graphtec CB09UB-K60.
A similar name does not guarantee the same shank diameter, holder, offset, coating, tip geometry, or compatible cutter list. If a machine manual specifies an official part, order by a verifiable part number and authorized source. If a compatible aftermarket blade is acceptable, compare physical dimensions and perform a controlled test before production use.
How to interpret the supplier values
The 1.5 mm figure is the listed shank diameter and should be checked directly against the holder. The 23 mm figure is the listed overall length. The 0.25 mm offset is an initial reference rather than a universal device setting. The page also reports 91.5 HRA hardness and flexural strength of 4000–4200 N/mm². No independent laboratory report is displayed, so those mechanical values should be treated as supplier-reported data.
Compatibility and acceptance checklist
Measure the existing blade shank and length. Confirm that the holder rotates freely and accepts the proposed blade without excessive clearance. Review the cutter manual for blade family, holder, offset control, maximum material thickness, and permitted force. Verify that the 60 degree tip is appropriate for the actual film and detail size. Do not rely on the product title alone.
Controlled test cut
Install the blade with minimal tip exposure. Use scrap from the actual job and begin with conservative speed and force. Cut a small square, circle, and detailed corner pattern. The face layer should weed cleanly while the release liner remains substantially intact. If corners lift or fail to close, inspect offset, holder rotation, debris, and blade wear before increasing force. If the liner is deeply scored, reduce blade exposure or force.
Record material name, measured thickness, blade batch, holder, speed, force, offset, and result. This record supports repeatability and helps distinguish blade problems from material or machine changes. Clean adhesive residue without forcing the holder bearing. Protect carbide tips from drops and side impact, and replace the blade when cleaning and parameter adjustment no longer restore consistent cuts.
Purchase conclusion
This listing may be evaluated when a buyer can confirm a compatible 1.5 mm holder, 23 mm length, 60 degree tip, and the supplier-stated 0.25 mm media limit. It should not be purchased as genuine CB09UB-K60 without verifiable evidence. For reliable selection, use physical measurement, the machine manual, supplier confirmation, and a controlled test cut together.
