小图王刻字刀装入刀座前,值得先留出一段检查时间。新刀切割异常,有时来自遗留碎屑、刀座装配或刀片系列选错。以下顺序用于组织安装前的确认工作;涉及拆装方式、弹簧等部件和固定位置时,应以对应设备及刀座说明为准。

1. 小图王刻字刀:先把新旧刀身份分清

将旧刀与新刀分别放入有保护的容器,保留包装标识。核对现用刀座要求的刀片系列,不把“小图王”“09U”等市场称呼直接当作完整零件号。Graphtec官方目录区分不同刀片与刀座系列;JEEFOO®供应产品仍需按具体货号核验。若商品名称、标注尺寸与现用刀存在疑点,先向供应方确认,再决定是否安装。

2. 检查刀座内部与调节部位

按说明使设备处于安全维护状态后取下刀座,观察入口处是否粘有胶屑、膜屑或粉尘。只按刀座维护要求清理,不用刀尖探孔,也不随意加入润滑油或清洗剂。检查调节部位是否能正常动作,固定件是否缺失。遇到卡滞、明显松旷或无法复位的情况,应先处理刀座问题,不能依靠夹得更紧来掩盖异常。

3. 确认装入状态而非只看外露

新刀应按说明规定的方向、顺序装入。带有独立小部件的刀座,要核对这些部件是否属于该型号并处于正确位置,不能照搬另一种刀座的装法。检查夹持及刀具所需的活动是否正常,手指避开刃口。刀片装不上、晃动明显或活动受阻时,不要强推、敲击或改磨刀杆;这些现象提示需要重新核对零件与装配。

4. 上机前清理工作区域

移走台面上的旧刀、包装碎屑与量具,再按设备说明固定刀座。确认压料、装料和切割路径没有明显障碍,避免把安装问题与材料跑偏混为一谈。刀尖外露量应依据实际面材与设备要求调整,不沿用旧刀磨损后留下的状态。首次动作从设备支持的试切开始,人在安全位置观察,发现异响、拉膜或深划底纸便停止检查。

安装前检查的重点,是让刀片身份、刀座状态和装配方法相互一致。小图王刻字刀完成这些确认后,再进入参数调整,排障时才有清晰的起点。

常见问题

“小图王”或“09U”能当作完整零件号吗?

不能。应同时确认设备完整型号、刀座系列、刀片货号与供货标识。市场名称或相近外形不能证明兼容性。

新刀装入后卡滞,是否应夹得更紧?

先停止安装,核对零件系列、方向、独立小部件和刀座状态。不要强推、敲击或改磨刀杆,也不要用更大夹紧力掩盖异常。

可参考Graphtec官方刀座目录核对系列信息;JEEFOO兼容替换产品仍需按实际货号与设备资料确认,不应把官方目录视为所有替换刀的适配证明。

英文技术摘要 / English technical summary

Before installing a replacement blade, identify the machine, blade holder and complete supplier part number. Market names and short family labels are not a substitute for the full product specification. Keep the old blade and new blade separate, with their packaging and identification available.

Inspect the holder under the maintenance conditions specified by the equipment manufacturer. Check for adhesive residue, film fragments and dust. Clean only as directed for that holder. Do not use the cutting tip as a probe or add oil or cleaning fluid without approval in the relevant instructions.

Install the blade in the stated direction and sequence. Confirm that any separate small components belong to the holder model. Check retention and the movement required by the tool design. If the blade cannot be inserted correctly, feels loose or binds, stop and verify the assembly rather than forcing it.

Clear old blades, packaging and measuring tools from the work area. Confirm the holder installation, material loading and cutting path. Use the supported test-cut procedure before production, and inspect the result when the blade, material or holder changes.

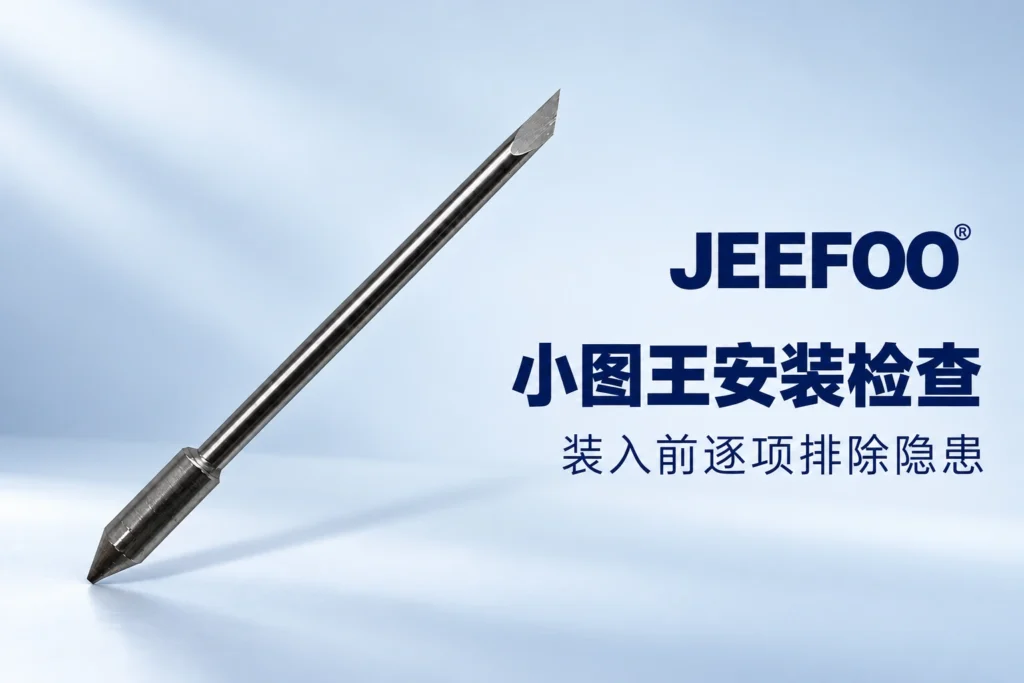

小图王刻字刀检查与选用主题图
